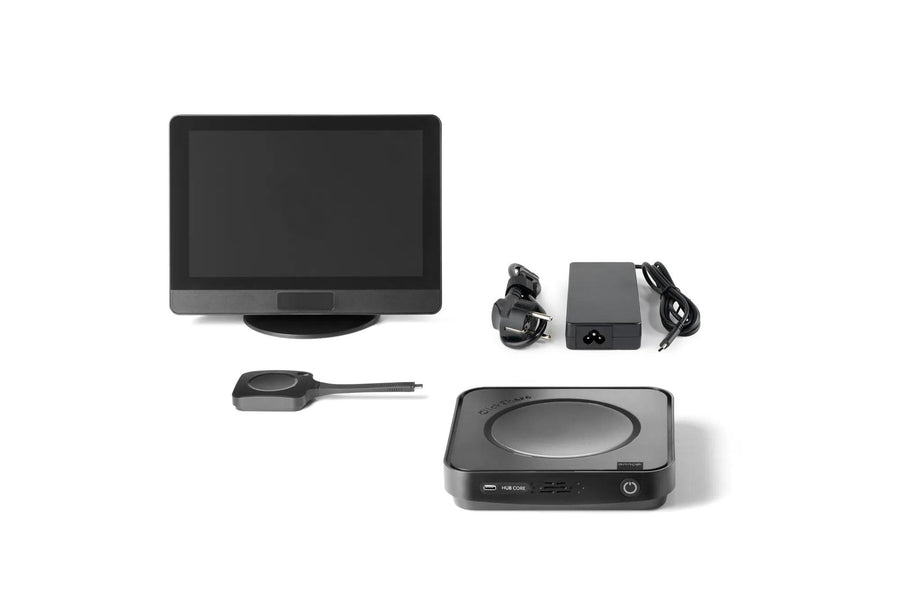

Barco ClickShare Video Conferencing Hub Core Kit – Hub Core and Control Panel Kit
The Barco ClickShare Hub Core and Control Panel Kit is a modular wireless video conferencing kit for hybrid meeting rooms. It lets participants start a meeting with one tap on a 10.1-inch touch panel and share 4K content with the ClickShare Button. Procure.ae, an authorised reseller, supplies the kit across the UAE with delivery and installation.
The Hub Core base unit accepts 4K UHD (3840 x 2160) video input and outputs up to 5120 x 2160 (UW5K) at 30 Hz over HDMI 2.0. The included 10.1-inch control panel has a projected capacitive touchscreen with 4-point multi-touch and a 1280 x 800 resolution, so meetings start with a simple tap. Wireless sharing uses the ClickShare Button 5th Gen and the ClickShare Desktop app, with Wi-Fi over 2.4, 5 and 6 GHz and Bluetooth 5.3.
The kit suits integrators and IT teams who want a customisable system for all room types. It is built on the Microsoft Device Ecosystem Platform (MDEP) and requires a Microsoft Teams Rooms license. The hub is managed through XMS Cloud over 1 Gbit Ethernet, with a Kensington lock and FCC/CE certifications listed. The Hub Core base unit draws up to 140 W, and the control panel is powered over USB from the base unit.
Key features
Specifications
| Key Features | Modular hub, touch control panel, 4K sharing, Android MDEP platform, XMS Cloud management, Kensington lock |
| Model | ClickShare Hub Core and Control Panel Kit |
| Type | Video Conferencing Accessory |
| What's in the Box | Hub Core base unit, ClickShare Hub Button 5th Gen, control panel, 10 m USB-C AOC cable, L-shape mounting plate, round base, screw pack, USB-C cable lock kit, power cord, power supply |
| Brightness | 300 nits (control panel) |
| Refresh Rate | 30 Hz (HDMI output) |
| Resolution | 3840 x 2160 (4K UHD) input, 5120 x 2160 (UW5K) output |
| Touch Points | 4-point multi-touch |
| Touch Technology | PCAP |
| Touchscreen | 10.1-inch PCAP, 1280 x 800, anti-fingerprint and anti-glare coating |
| License | Microsoft Teams Rooms license required |
| Operating System | Android (MDEP) |
| Bluetooth | Bluetooth 5.3 |
| Connectivity | Wi-Fi, Bluetooth 5.3, 1 Gbit Ethernet, USB-C, USB-A, HDMI 2.0, DisplayPort over USB-C |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI 2.0 out × 1, USB-C 2.0/3.0 × 3 (plus power input), USB-A 2.0/3.0 × 1, Ethernet 1 Gbit × 1 |
| Wi-Fi | 802.11 a/b/g/n/ac/ax/be, 2.4 GHz, 5 GHz and 6 GHz |
| Power Consumption | 140 W (max) hub; 7.3 W (max) control panel |
| Dimensions | 180 x 37 x 180 mm (hub); 187.9 x 254.5 x 76.9 mm (control panel) |
| Mounting | Mounting disc, L-shape mounting plate and round base included |
| Operating Temperature | 0 to 40 °C |
| Weight | 720 g (hub); 820 g (control panel) |
| Certifications | FCC, CE |
| Warranty | 3 years standard |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
