Barco ClickShare Next-Gen Button (5th Gen) Wireless Sharing Button

Barco ClickShare Next-Gen Button (5th Gen) Wireless Sharing Button

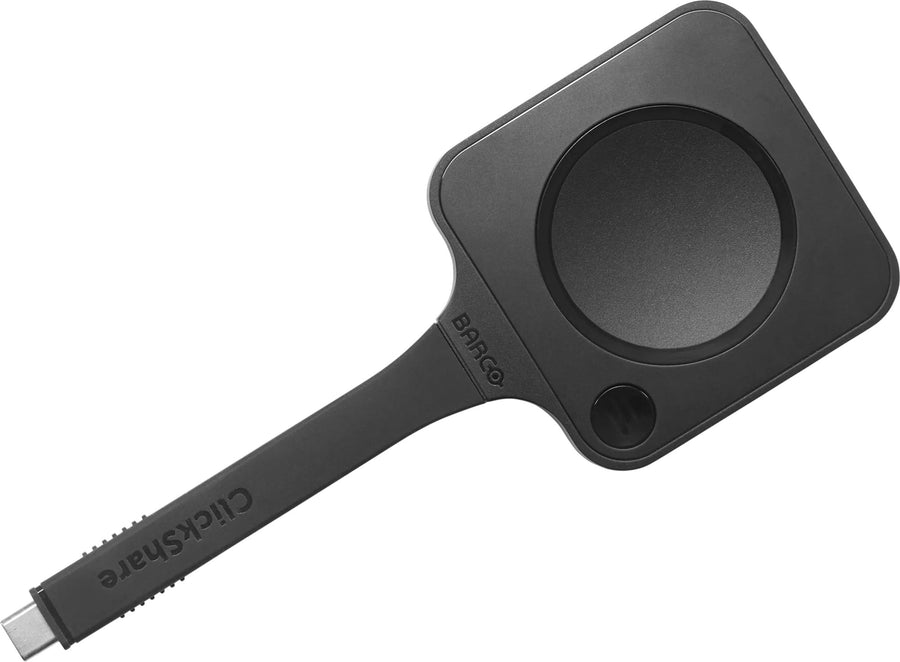

The Barco Next-Gen ClickShare Button (5th gen) is a USB-C wireless sharing accessory for meeting rooms. Plug it into a laptop to share content up to 4K (3840 x 2160) at 30 fps or join video calls wirelessly. It supports IEEE 802.11a/b/g/n/ac/ax on 2.4, 5 and 6 GHz and draws power over USB. Procure.ae supplies it across the UAE.

The Button connects through a USB Type-C 3.1 Gen 1 connector that supports USB-C DisplayPort Mode, with video outputs up to 4K (3840 x 2160) at 30 fps. Wireless transmission uses IEEE 802.11a/b/g/n/ac/ax on the 2.4 GHz, 5 GHz and 6 GHz bands. It is powered over USB at 5 V DC, drawing 600 mA typical and 900 mA maximum. The unit measures 63 x 16 x 161.3 mm (W x H x D), weighs 88 g and operates from 0 to 40 °C.

On a ClickShare conferencing system, one click on the Button shares content or joins a hybrid meeting, for employees and guests alike. It suits meeting rooms, boardrooms and presentation spaces where presenters bring their own laptops, and at 88 g it is compact. Procure.ae supplies the Next-Gen ClickShare Button with delivery and installation across the UAE and MEA, plus free training and support.

Resolution
3840 x 2160 (4K UHD) at 30 fps
Type
Wireless Sharing Button
Weight
88 g

Key features

01
4K output
Video outputs up to 4K (3840 x 2160) at 30 fps over USB-C.
02
USB-C connection
USB Type-C 3.1 Gen 1 with USB-C DisplayPort Mode.
03
Multi-band wireless
IEEE 802.11a/b/g/n/ac/ax on the 2.4 GHz, 5 GHz and 6 GHz bands.
04
USB power
Powered over USB at 5 V DC, with 600 mA typical and 900 mA maximum.
05
One-click sharing
One click on the Button shares content or joins a hybrid meeting on a ClickShare system.
06
Compact body
Measures 63 x 16 x 161.3 mm and weighs 88 g.

Specifications

General
Key Features4K output at 30 fps, USB-C DisplayPort Mode, IEEE 802.11ax Wi-Fi, 2.4/5/6 GHz bands, USB power, one-click sharing
ModelNext-gen ClickShare Button
TypeWireless Sharing Button
Display
Resolution3840 x 2160 (4K UHD) at 30 fps
Performance
Storage Conditions-20 to 60 °C
Connectivity
Connector TypeUSB Type-C 3.1 Gen 1
Frequency Band2.4 GHz, 5 GHz and 6 GHz
PortsUSB-C × 1
Wi-FiIEEE 802.11 a/b/g/n/ac/ax
Power
Power Consumption5 V DC over USB, 600 mA typical, 900 mA maximum
Physical
Dimensions63 x 16 x 161.3 mm
Operating Temperature0 to 40 °C
Weight88 g
