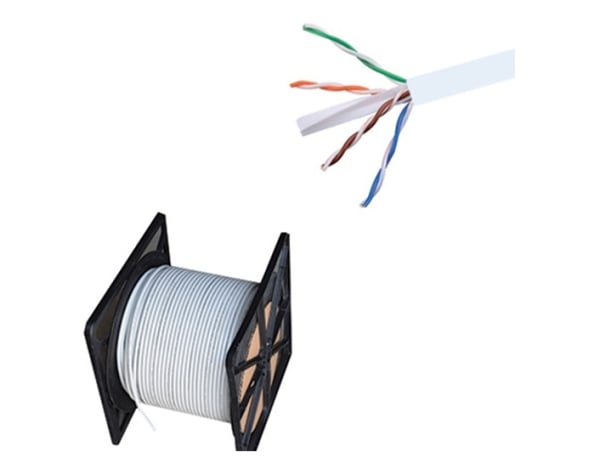

Avalone Cat6A 10G UTP 23 AWG Cable Roll - Grey

The Avalon Cat6A 10G UTP 23AWG LSZH Cable Roll 305m in Grey is a structured cabling product available in the UAE from Procure.ae.

The Avalon ANC6AUPGY23-305MT-LSZH is a 305m reel of Cat6A 10G Unshielded Twisted Pair cable with 23AWG solid copper conductors and a Low Smoke Zero Halogen (LSZH) jacket. Meeting TIA-568-C.2 Category 6A and ISO/IEC 11801 Class EA standards, it supports 10GBase-T Ethernet at up to 500MHz over horizontal runs up to 100 meters. The LSZH jacket makes it suitable for buildings and spaces where fire safety and toxic fume emission are critical requirements, including public facilities, transportation hubs, and commercial buildings.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Key features

Cat6A 10G Rated

Supports 10GBase-T at 500MHz for 10 Gigabit Ethernet over 100m horizontal runs.

23AWG Solid Copper Conductors

Full-size conductors for maximum signal integrity and performance.

LSZH Jacket

Low Smoke Zero Halogen for fire-safe installations in public and commercial buildings.

305m Reel Length

Standard installation reel for large-scale Cat6A infrastructure projects.

Grey Color-Coding

Easily identified in mixed-cable ceiling and floor installations.

TIA-568-C.2 Category 6A Compliant

Meets US and international structured cabling standards.

Superior Alien Crosstalk (AXT) Performance

Exceeds Cat6A AXT requirements for dense cable runs.

Compatible with Cat6A Keystones and Patch Panels

Works with all standard Cat6A termination hardware.

Specifications

General
Application	Indoor use

Connectivity
Conductor	23 AWG
Jacket Material	LSZH (low-smoke zero-halogen)
Shielding	Unshielded (U/UTP)

Physical
Color	Grey
Length	305 m

Compliance
Certifications	Cat6 A, RoHS
